장 점 1. EMI/RFI/자기장/고압에 대해 내성 2. High accuracy 3. 가혹한 환경에서 사용가능 : 고온(200도), 습한환경 4. 초소형으로 가벼우며 견고함 5. Dual FBG output 기술 - real time temperature compensation
제품 구성 1. 광섬유로드셀 FG25 OPTICAL IN-LINE SENSOR 특징: 압축 및 인장 측정, 초소형 / capacity:11.3Kg(25LB) / Size : 7 x 8 x 10(WxLxH,mm) / Operating temp : -55 ~ 200 ℃ / Output(µε) : 3500at FS nom / Fiber op WL(nm) : 830 2. 광섬유핑거/그립퍼센서 GR25 FINGER FORCE SENSORS-TACTILE SENSOR 용도:산업용 로봇 / capacity:11.3Kg(25LB) / 15.5mm active loading surface / Operating temp : -55 ~ 200 ℃ / Output(µε) : 3500at FS nom / Fiber op WL(nm) : 830 GS05 FBG GRASPER SENSOR 용도:aerospace, surgical 로봇 / capacity:2.2Kg(5LB) / ultra-miniature 5mm envelope / Operating temp : -55 ~ 200 ℃ / Output(µε) : 3500at FS nom / Fiber op WL(nm) : 830 3. 스마트브래킷센서 SB30 SMART BRACKET SENSORS 용도:T-Slot extrusion systems / capacity:11.3Kg(25LB) or 22.7Kg(50LB) / Operating temp : -51 ~ 71 ℃ / Rated Output(mV/V) : 1.25 or 2.5 / Safe overload : 400% SB20 SMART BRACKET SENSORS 용도:T-Slot extrusion systems / capacity:11.3Kg(25LB) / Operating temp : -51 ~ 71 ℃ / Rated Output(mV/V) : 2 / Safe overload : 400%

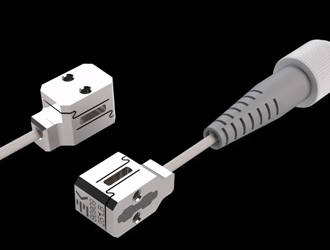

FG25 OPTICAL IN-LINE SENSOR

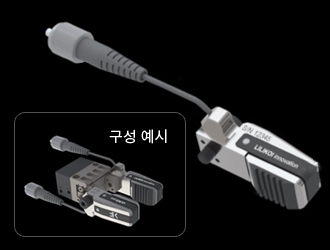

GR25 FINGER FORCE SENSORS-TACTILE SENSOR

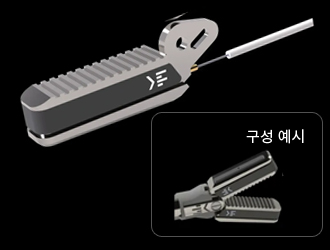

GS05 FBG GRASPER SENSOR

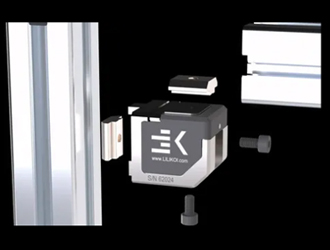

SB30 SMART BRACKET SENSORS

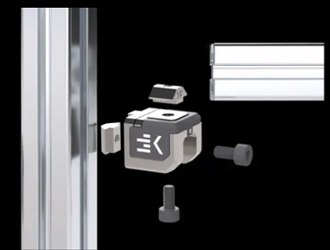

SB20 SMART BRACKET SENSORS
